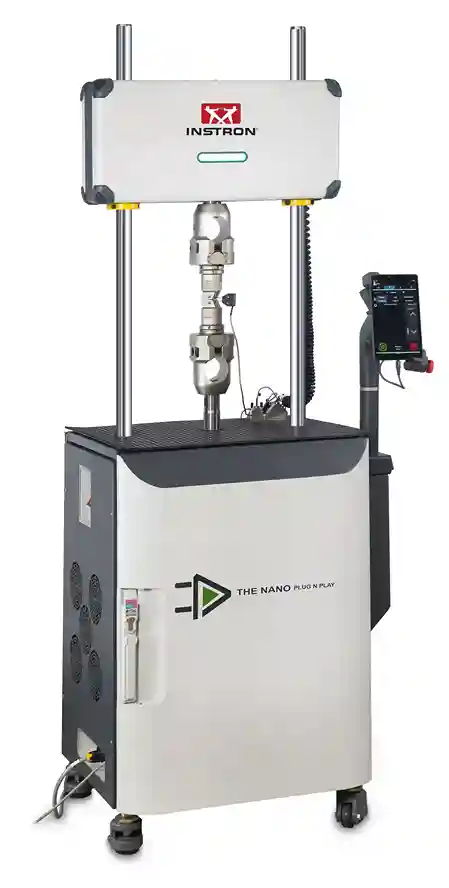

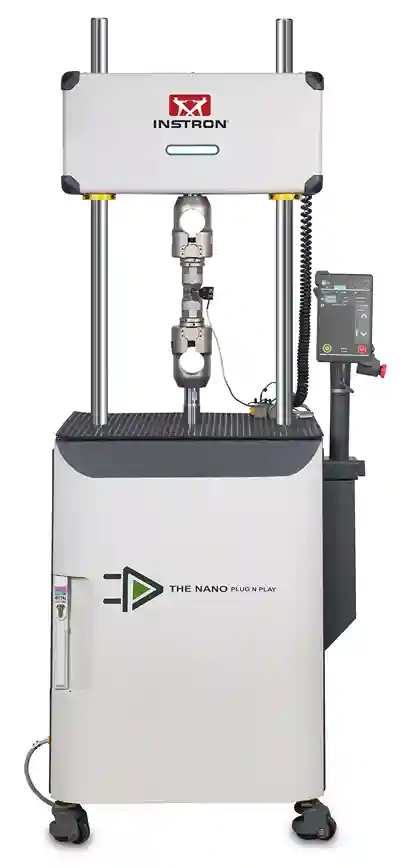

Nano Force Fatigue Test System BI-7000
The BI-7000 Nano Force Fatigue Testing Machine is a compact, high-performance servo-hydraulic test system designed for material fatigue testing under cyclic loading. Engineered for testing small to medium-sized specimens, it delivers up to 25 kN dynamic force capacity and supports a broad range of mechanical tests including tensile, compressive, flexural, fracture, and crack propagation.
Built with a compact single or dual-column load frame, the system integrates a high-resolution digital controller, servo-hydraulic actuator, and a plug-and-play Hydraulic Power Unit (HPU). The BI-7000 is optimized for low-cycle and high-cycle fatigue testing of materials such as metals, polymers, elastomers, composites, and aerospace alloys. It features high-speed data acquisition, exceptional control accuracy, and a modular fixture interface — making it ideal for R&D labs, quality assurance departments, and material development centers.
Specifications of BI-7000 Nano Fatigue Test System
| Feature | Details |
|---|---|
| Model Series | BI-7000 Nano Series |
| Load Capacity | Up to 25 kN dynamic rating |
| Actuation Type | Servo-hydraulic actuator |
| Test Capabilities | Tension, Compression, Bending, Fracture, Crack Growth |
| Frame Configuration | Compact single or dual-column design |
| Control System | Digital closed-loop controller with 24-bit resolution |
| Data Acquisition | High-speed, up to 100 kHz/channel |
| Displacement Measurement | Integrated LVDT, high-resolution (≤ 0.1 µm optional) |
| Fatigue Frequency Range | 0.01 Hz to 100 Hz (typical) |
| Load Accuracy | ±0.5% of reading (optional ±0.25%) |
| Hydraulic Power Supply | Plug-and-play HPU; 210 bar operating pressure |
| Mounting Space | Column daylight and width customizable |
| Software Platform | WinTest® or NanoTest custom fatigue suite |
| Applications | Metals, plastics, composites, rubber, aerospace alloys |
| Safety Features | Overload protection, emergency stop, interlock logic |
Key Features of Servo-Hydraulic Dual Station Shock Absorber Test System
1. Compact Servo-Hydraulic Architecture
- Compact footprint with high stiffness frame
- Available in single or dual-column configurations, depending on space and load requirements
- Ideal for desktop and small lab environments
2. Dynamic Load Capacity up to 25 kN
- Supports tensile, compression, and flexure tests under static and cyclic loading
- Capable of low-cycle and high-cycle fatigue tests with programmable load profiles
3. Plug-and-Play Hydraulic Power Unit (HPU)
- Integrated HPU supports operating pressure up to 210 bar
- Designed for energy-efficient, quiet operation with minimal maintenance
4. High-Resolution Closed-Loop Digital Controller
- 24-bit resolution for precise control of load and displacement
- Integrated waveform generator with real-time loop update (up to 40-bit digital)
5. High-Speed Data Acquisition System
- Captures fatigue test parameters at speeds of up to 100 kHz per channel
- Supports multiple sensor inputs including LVDTs, strain gauges, and extensometers
6. Wide Frequency and Displacement Range
- Operates from 0.01 Hz to 100 Hz, suitable for both low and high-speed testing
- Standard stroke of 150 mm with high-resolution displacement feedback (down to 0.1 µm optional)
7. Versatile Test Capabilities
- Suitable for crack growth testing, fracture toughness, durability analysis, and fatigue life prediction
- Modular fixturing supports flat specimens, round bars, and custom geometries
8. Industry-Focused Software Platform
- Supports test execution, waveform generation, real-time monitoring, and report generation
- Compatible with NanoTest or Instron’s WinTest® suite for test automation
9. Safety and System Protection
- Equipped with interlock logic, overload detection, and emergency shutdown mechanisms
- Ensures safe operation during high-cycle testing routines
10. Broad Material Compatibility
- Designed for fatigue testing of rubber, plastics, advanced alloys, aerospace-grade metals, composites, and laminates
- Meets material testing needs across aerospace, automotive, defense, biomedical, and industrial sectors
Get immediate quote
Applications of the BI-7000 Nano Force Fatigue Testing System
1. Aerospace Component Durability Testing
- Fatigue life analysis of aircraft structural materials under simulated load cycles
- Evaluation of high-strength alloys and composites for fracture toughness
2. Automotive Suspension and Chassis Material Validation
- Testing spring steels, bushings, mounts, brackets, and weld joints
- Useful for crack initiation and propagation studies in automotive R&D
3. Biomedical Implant and Material Fatigue Testing
- Used for cyclic load testing of prosthetics, stents, and surgical-grade materials
- Supports research in bio-compatible metals and polymers
4. Material Research and Educational Labs
- Ideal for universities and research labs performing long-term fatigue simulation, tensile/compressive testing, and fracture studies
- A compact, robust system for mechanical testing programs
5. Polymers, Rubbers, and Elastomer Testing
- Evaluates performance of dampers, bushings, seals, and structural rubber parts
- Supports strain-controlled fatigue testing and multi-axial stress scenarios
6. Defense and Military Equipment Testing
- Validates fatigue resistance of critical mechanical assemblies exposed to harsh conditions
- Tests materials for fatigue life and failure thresholds in tactical environments
