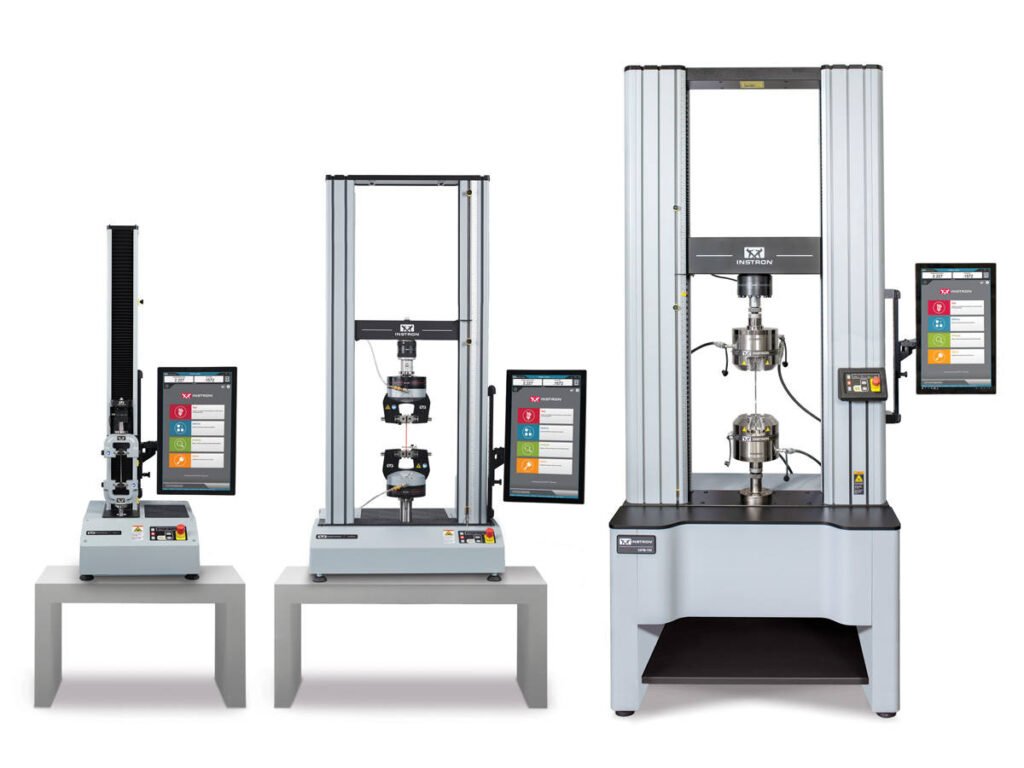

6800 Series Universal Testing Systems
Up to 300 kN Force Capacity
Engineered for outstanding performance, the 6800 Series stands as Instron’s most sophisticated universal testing system, offering unmatched accuracy, dependability, and precise alignment that complies with Nadcap standards. Additionally, its refined ergonomic design ensures a more comfortable and efficient testing experience for modern-day operators.
| Force Capacity Range | 0.02 N (2 gf) to 300 kN |
|---|---|
| Load Measurement Accuracy | ± 0.5% of Reading Down to 1/1000 of Load Cell Capacity |
| Data Acquisition Rate | Up to 5000 Hz with Adjustable Bandwidth Control |
| Recommended For | Advanced Testing, Complex Data Acquisition with Multiple Channels, High Throughput Demands, Highly Regulated Industries, Future Proofing |
| Features |
• Auto Positioning • Specimen Protect • Advanced Accessory and Automation Compatibility • Automatic Gain Adjustment • Increased Axial Stiffness Compared to 3400 Series • Up To 13 Channels + Analog Output and Digital I/O Board • Removable Handset • Collision Mitigation • Safety Coaching • Optional Smart-Close Air Kit • Frames with Height and Width Options |
3400 Series Universal Testing Systems
Up to 300 kN Force Capacity
The 3400 Series electromechanical universal testing machines provide the ideal balance of simplicity and performance for everyday quality control testing and general mechanical applications.
| Force Capacity Range | 0.025 N (2.5 gf) to 300 kN |
|---|---|
| Load Measurement Accuracy | ± 0.5% of Reading Down to 1/250 of Load Cell Capacity |
| Data Acquisition Rate | Up to 1000 Hz |
| Recommended For | Simple Testing |
| Features |
1. Collision Mitigation 2. Safety Coaching 3. Optional Smart-Close Air Kit 4. Frames with Height Options |
Automation for Universal Testing Systems
Instron provides a variety of automation solutions for universal testing machines, designed to enhance throughput, consistency, and safety—while allowing skilled operators to dedicate their time to more advanced and innovative tasks. These automation systems are available as full turnkey solutions or as modular add-ons compatible with existing universal testing setups, and can be customized to meet the unique needs of your testing program.
| AT6 | The AT6 system is built around a 6-axis robot capable of high-volume, round-the-clock testing, automating everything from specimen measurement to data collection and disposal, and can even integrate additional testing equipment such as Rockwell and Vickers hardness testers, durometers, and roughness testers. |
|---|---|
| AT3 | With a relatively compact footprint, the AT3 is capable of holding up to 160 specimens and can automate the entire testing process from specimen measurement to data collection and disposal. The system is commonly configured for tensile, compression, flex, and lap shear testing to meet a range of international standards. |
| Automated XY Stage | The AT2 can be installed on any new or existing 6800 or 5900 Series universal testing system to automate compression, tensile, and flexure testing of devices or components with multiple test points or multiple components with repetitive test points. |
| Automated Carousel | The automated carousel testing system utilizes an innovative, adaptable design to automate batch testing – typically used for compressive type tests on medical vials, cartridges, and pre-filled syringes. |
| CT6 Cobot | This system pairs a collaborative robot (cobot) with a 6800 or 5900 Series universal testing system to increase the efficiency of small to mid-sized testing labs that require a high degree of flexibility in their testing systems. |
| Multi-Station | While not a traditional automation system, the 6800 Series multi-station system offers enhanced throughput with its ability to perform simultaneous, independent tests on up to five separate specimens using a single load frame. |

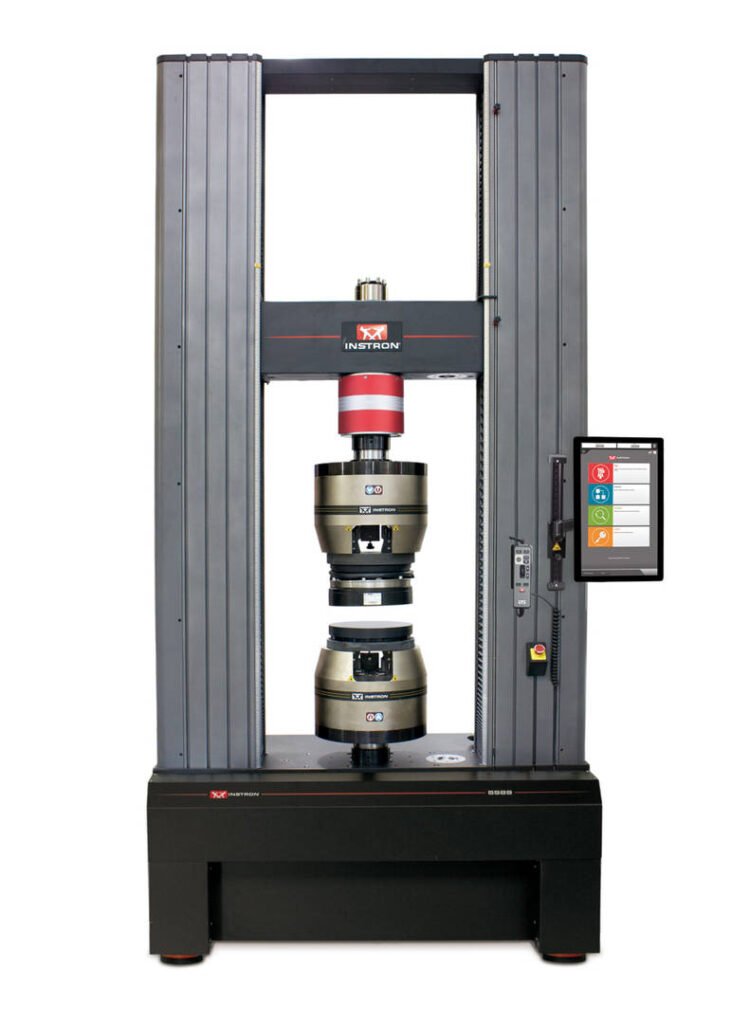

5980 Series Universal Testing Systems
Up to 600 kN Force Capacity
The 5980 Series is a floor-standing platform designed to deliver the highest force capacity among Instron’s electromechanical universal testing systems. With a capability of up to 600 kN, it is ideal for testing high-strength materials and meets the rigorous alignment standards required by Nadcap.
| Maximum Force Capacity | Up to 600 kN |
|---|---|
| Load Measurement Accuracy | ± 0.5% of Reading Down to 1/1000 of Load Cell Capacity |
| Data Acquisition Rate | Up to 2500 Hz with Adjustable Bandwidth Control |
| Recommended For | Metal Alloys, Composites, and Other High Strength Materials |
| Features |
• Specimen Protect • Advanced Accessory and Automation Compatibility • Automatic Gain Adjustment • Increased Axial Stiffness • Up To 13 Channels + Analog Output and Digital I/O Board • Removable Handset |
Industrial Series Universal Testing Systems
Up to 2000 kN Force Capacity
Instron’s Industrial Series features hydraulically powered universal testing systems built with spacious test areas, exceptional frame rigidity, and the strength required to handle high-force testing of materials up to 2000 kN.
| Maximum Force Capacity | Up to 2000 kN |
|---|---|
| Load Measurement Accuracy | ± 0.5% of Reading Down to 1/500 of Load Cell Capacity |
| Data Acquisition Rate | Up to 1000 Hz |
| Recommended For | Metal Alloys, Concrete, and Other High Strength Materials |
| Features |
• Specimen Protect • Automatic Gain Adjustment • Removable Handset • Dual Test Space Design on Select Frames • Compatible with Advanced Extensometry |
Specialty Systems
Instron’s Engineered Solutions Group collaborates closely with customers to create customized systems tailored to their unique application needs. The examples shown are not an exhaustive list of our specialized solutions—please reach out to discuss your specific requirements.
| Torsion Add-On | The Torsion Add-On can be integrated with any new or existing 6800 or 5900 Series universal testing system, allowing for simultaneous or independent axial and torsional testing. |
|---|---|

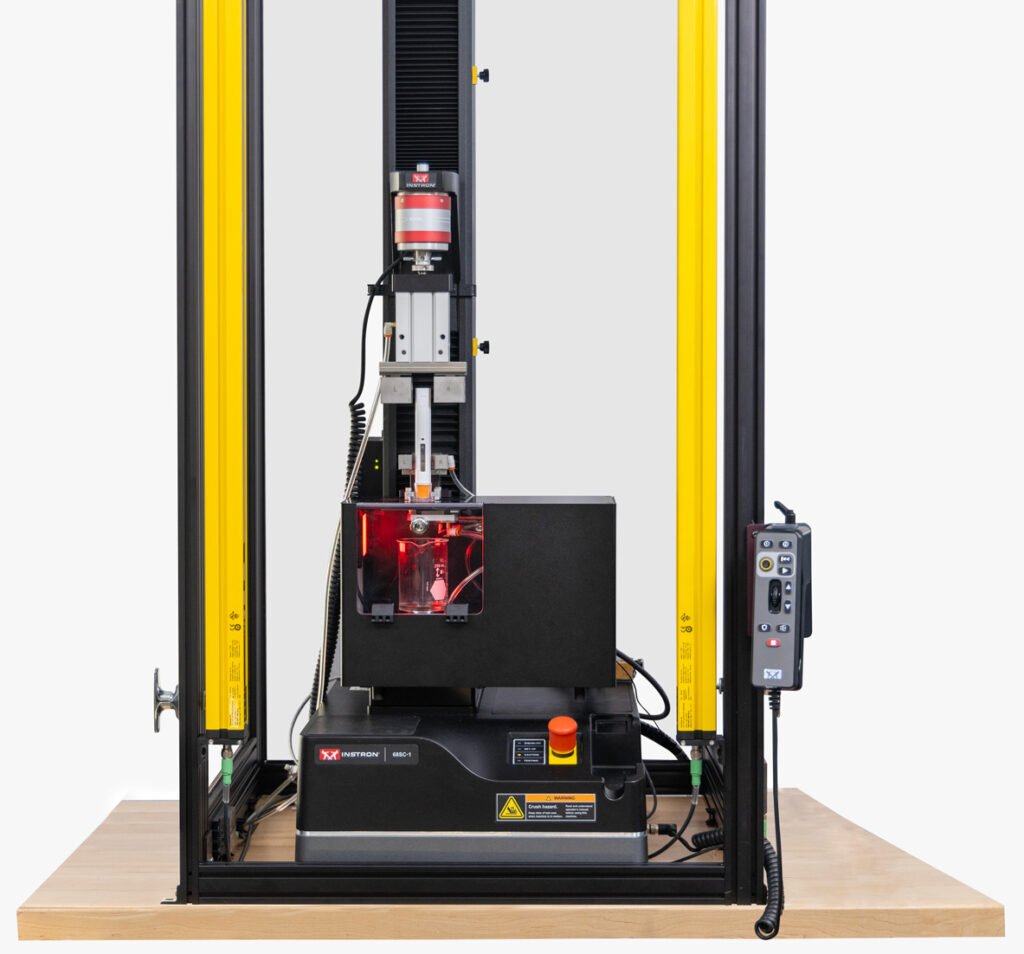

| Autoinjector Testing System | Developed in close partnership with pharmaceutical companies and CDMOs, Instron’s Autoinjector Testing System provides full functionality testing in an all-in-one, easy to use package. Designed to address the requirements of ISO 11608, the Autoinjector Testing System makes it easy to run a complete sequence of tests on a single system. |

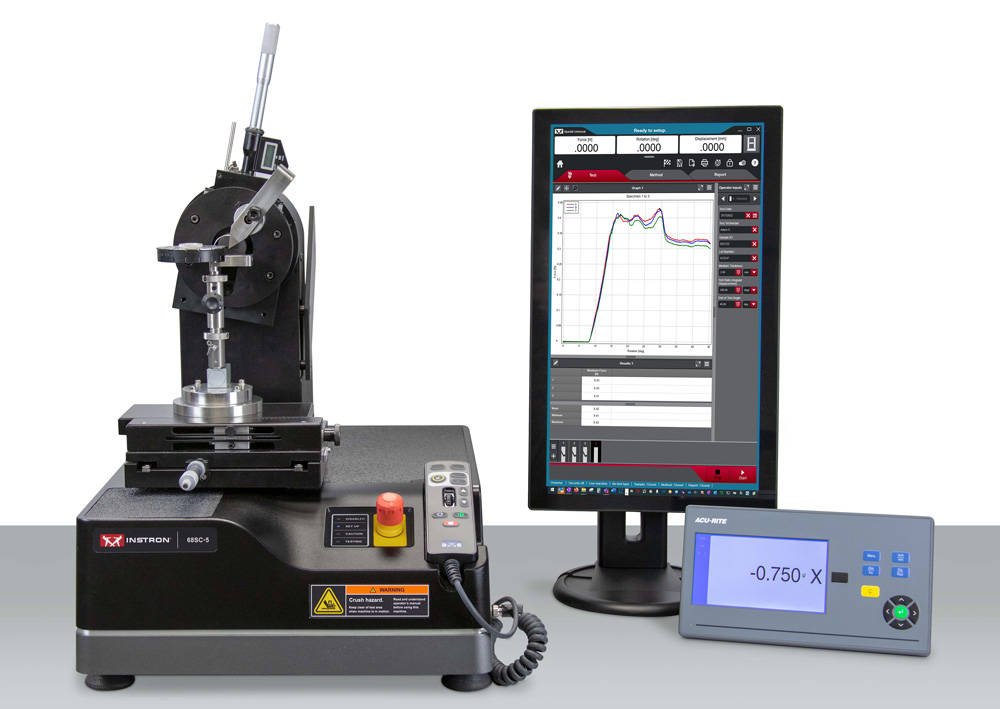

| Curved Needle Testing System | The Curved Needle Testing System is designed for testing the needles used in wound closure and surgical procedures. It can be used to perform curved needle puncture testing per ASTM F3014 and cantilever bend testing. The curved needle puncture testing fixture is used to evaluate needle sharpness and coating durability, and the needle bend testing fixture is used to evaluate the flexural properties of a needle during use. |
