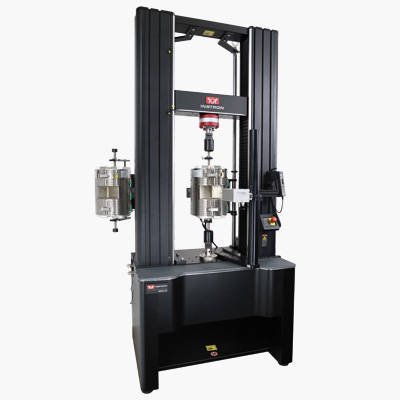

1200°C Three-Zone Split Tube Furnace
This three-zone split tube furnace features a side entry extensometer port and is manufactured with a wire-wound element for maximum operation up to 1200°C (2200°F). The elements are uniquely formed to provide optimum temperature uniformity, ensuring conformance with testing standards such as ASTM E21, ISO 6892-2, EN10002-5,and EN2002-2. The top and bottom furnace endplates are durable, provide excellent insulation, and include a 20 mm (0.787 in) diameter hole for use with pull rods.
| Specimen Temperature Range | 200 - 1050°C (392 - 1922°F) |
|---|---|
| Overall Heated Length | 300 mm (11.81 in) |
| Interior Diameter | 75 mm (2.95 in) |
Mounting Brackets
Mounting brackets are used to securely attach the furnace to the test system.
| Description | Catalog No. |
|---|---|
| Floor Model Standard Furnace Mounting | CP119938 |
| Floor Model Advanced Furnace Mounting | CP107737 |

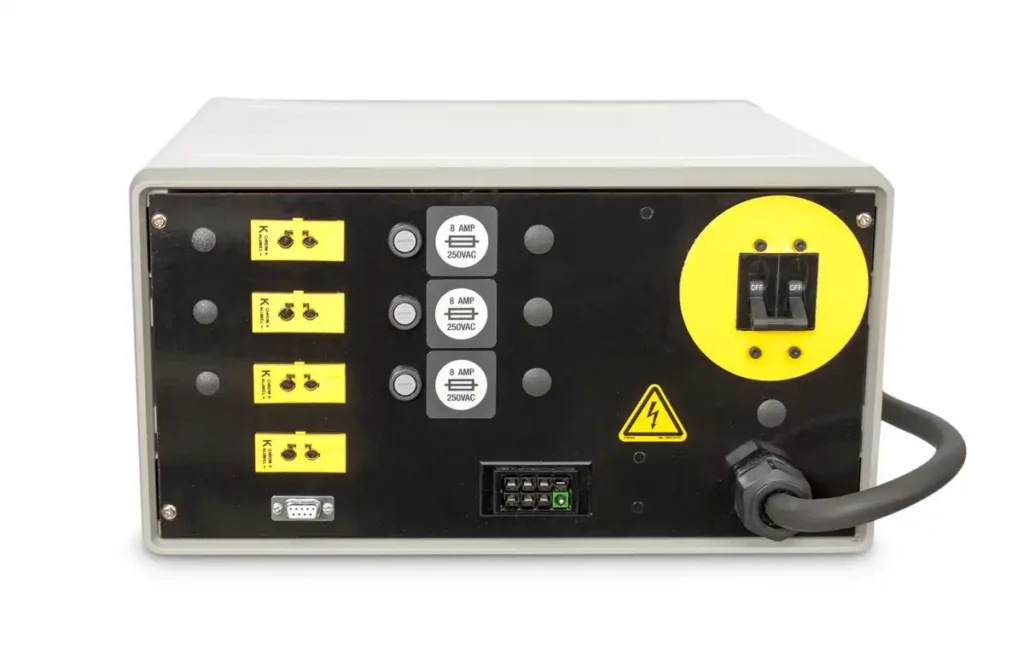

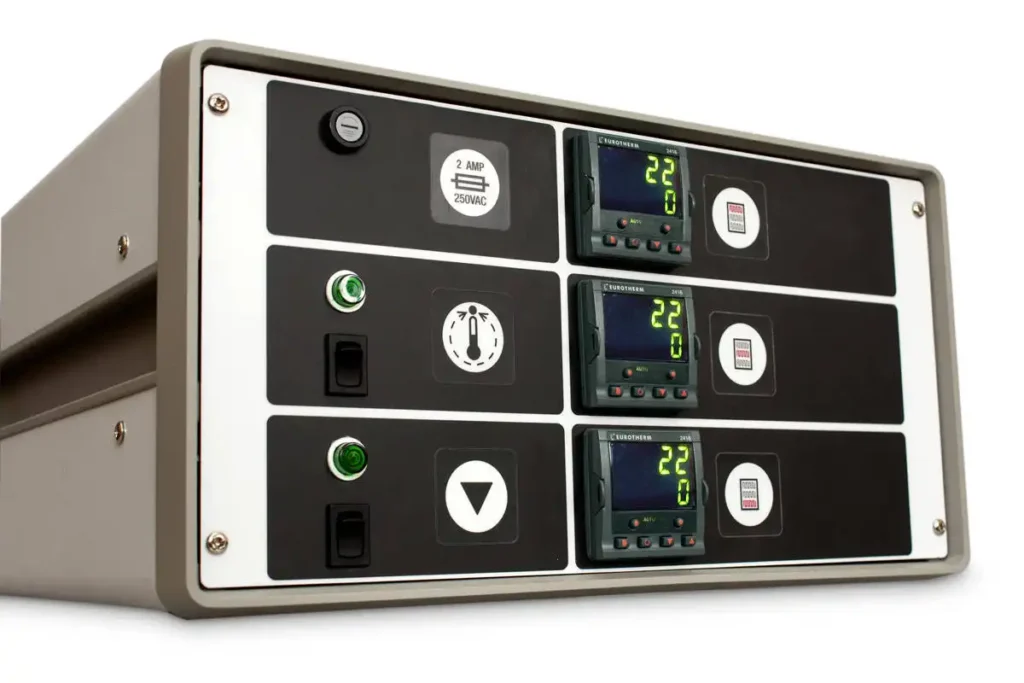

Three-Zone Temperature Control Systems
Temperature control systems are designed for controlling the heat output of furnaces. The control systems can be configured to operate nearly any furnace with any one of several different thermocouples types. Three zone control systems are designed for heat-only furnaces with three separate zones of heating elements, and typically three different thermocouples to control those zones.
| Description | Catalog No. |
|---|---|
| Type K Control System | 3119-960 |
| Type R/S Control System | 3119-962 |
| Stepdown Transformer | W-C015-TRAN |
Quick-Change Adapters
Quick-change adapters are typically used in hot tensile applications to provide simplified load train installation. They consist of a button-head washer that is threaded onto the room temperature end of a pull rod. The washer and pull rod are then inserted through a slot in the adapter body.
| Force Capacity | Effective Length | Catalog No. |
|---|---|---|
| 90 kN | 6.43 in | W-7556M4 |
| 10 kN | 5.58 in | W-7556M2 |
Threaded End Specimen Holders
Catalog No. W-7551-C
Threaded-end specimen holders made of Inconel 713-C rated for a maximum temperature of 1100 Deg. C (2000 Deg. F).
| Specimen Thread Size | Catalog No. |
|---|---|
| Metric M6 x 1.0 | W-7551-CM1 |
| Metric M8 x 1.0 | W-7551-CM2 |
| Metric M8 x 1.25 | W-7551-CM3 |
| Metric M10 x 1.5 | W-7551-CM4 |
| Metric M12 x 1.5 | W-7551-CM5 |
| Metric M12 x 1.75 | W-7551-CM6 |
| Metric M14 x 2.0 | W-7551-CM7 |
| Metric M16 x 1.5 | W-7551-CM8 |
| Metric M16 x 2.0 | W-7551-CM9 |
| Metric M18 x 2.5 | W-7551-CM10 |
| Metric M19 x 1.5 | W-7551-CM11 |
| US Customary 10-24 | W-7551-CU1 |
| US Customary 10-32 | W-7551-CU2 |
| US Customary 1/4-20 | W-7551-CU3 |
| US Customary 1/4-28 | W-7551-CU4 |
| US Customary 5/16-24 | W-7551-CU5 |
| US Customary 5/16-18 | W-7551-CU6 |
| US Customary 3/8-16 | W-7551-CU7 |
| US Customary 3/8-24 | W-7551-CU8 |
| US Customary 7/16-14 | W-7551-CU9 |
| US Customary 1/2-13 | W-7551-CU10 |
| US Customary 5/8-11 | W-7551-CU11 |
| US Customary 3/4-10 (Type R3f) | W-7551-CU12 |
Pull Rods
High temperature pull rods made of made of Inconel 713-C for strength and resistance to corrosion and oxidation. Both ends are threaded 0.75-10m-RH and are compatible with a range of grips, adapters, and specimen holders.
Rated for 9070 kgs (20,000 lbs) load up to 760°C (1400°F) and 1360 kgs (3000 lbs) load at a maximum temperature of 1100°C (2000°F).
| Pull Rod Length | Force Capacity | Catalog No. |
|---|---|---|
| 273 mm (10.75 in) | 90 / 26.7 kN | W-7546-C |
| 330 mm (13.00 in) | 90 / 26.7 kN | W-7547-C |
High Temperature Tension Wedge Grips
Catalog No. W-7554
One set (2) wedge grip specimen holders made of Hastelloy X. Holders designed for tension-only loading and may be equipped to accept flat specimens from 1.13 mm to 3.18 mm thick (0.005 in to 0.125 in) by 12.7 mm to 22.225 mm wide (0.5 in to 0.875 in). Design of holders requires drilling of holes in specimen end tabs for initial loading and jaw alignment. Centering pin diameter 4.1148 mm (0.162 in). Holders are 70mm (2.75 in) long by 38mm (1.375 in) diameter contain 0.75-10f-RH thread for attachment to pull rods. Jaw inserts ordered separately, selected based on thicknesses of specimens to be tested. See W-7554-A1, -A3, and -A4 below for available inserts and corresponding thickness ranges.
| Specification | Value |
|---|---|
| Specimen Diameter | Pin 4.1148 mm (Pin 0.162 in) |
| Specimen Thickness | 1.13 - 3.18 mm (0.005 - 0.125 in) |
| Specimen Width | 12.700 - 22.225 mm (0.500 - 0.875 in) |
| Temperature Rating | 926°C (1700°F) |
High Temperature Wedge Jaw Inserts
One set (two pairs) of high temperature wedge jaw inserts for use with the W-7554 high temperature tension wedge grips.
| Type | Specimen Thickness | Temperature Rating | Catalog No. |
|---|---|---|---|
| Smooth-Faced | 0.13 to 1.0 mm (0.005 to 0.040 in) | 926°C (1700°F) | W-7554-A1 |
| Serrated-Faced | 1.0 to 2.0 mm (0.040 to 0.078 in) | 926°C (1700°F) | W-7554-A3 |
| Serrated-Faced | 2.0 to 3.18 mm (0.078 to 0.125 in) | W-7554-A4 |
